Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: VinTelecom
  • Model Number: CP832
  • color: white
  • Max lines supported: 8
  • Max Ext. supported: 32
  • Ordinary telephones: support
  • Analog telephones: support

Packaging & Delivery

Packaging Details gift box
Delivery Time 3-7days based on order quantity


1.Model: CP832 Series PABX
2.Max Co lines 8; Extensions 32
3.Rich pabx functions at best prices
4.Ideal for SOHO application

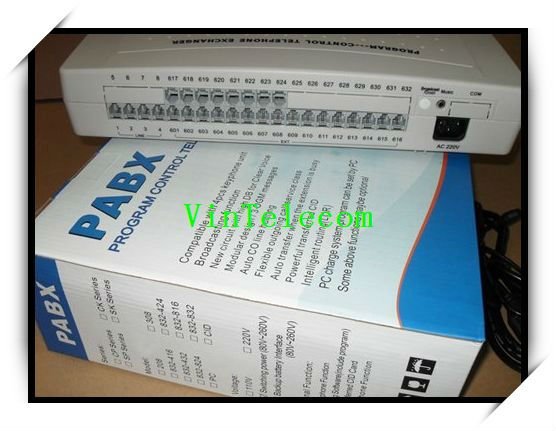

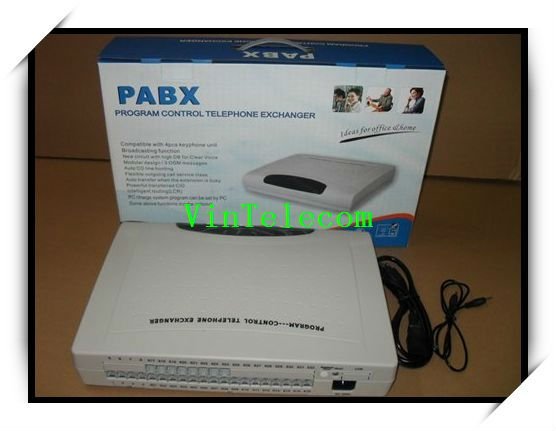

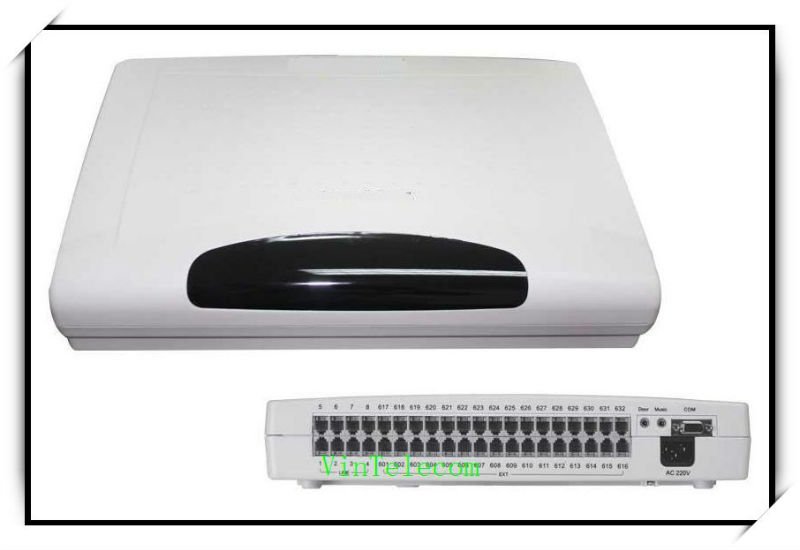

Product Name: Telephone PBX
Model: CP832
(8CO lines x 32 Extensions)
Automated Telephone System
This CP832 PABX System is very easy to install and use. It has all the standard features and it is compatible with your current analog phones. The PBX system is compatible with non-proprietary standard analog phones (proprietary phones cannot be used)
The SP832 PABX model is your ideal small or home office receptionist. It is features packed and comes with an easy to follow instruction CD/instruction booklet.The PBX works all over the world for any AC voltages between 85-240V AC.Both the common 110V(America)/220v(Europe) power are thus supported.
  • 8 CO lines and 32 extension lines
The CP-832 allows for smaller phone systems to grow even if the current system has less than 8 CO lines and 32 extension lines because it can still function normally without having all phone lines plugged in.
  • 3 different outgoing message (OGM
Any one of three OGM (user recordable greeting messages for (i) incoming calls, (ii) busy calls and (iii) calls with no answer) will be played according to the call status.
  • Flexible Direct/indirect CO llineaccess:
CO lines can be accessed by dialing the phone number directly or indirectly by first dialing '9'. The PBX automatically allocates a free CO line for the user on a round robin basis or from CO Line 1 onwards. Additionally, a user can override the default PBX selection by picking a particular CO line for the outgoing call.
  • Secretary assisted dialing
The secretary can dial an outside call from any extension and then transfer the call to another extension.
  • Manual transfer of a CO line call to another CO line
Incoming calls can be transferred to an external phone number manually.
  • Toll restriction scheme
Outgoing long-distance calls can be disabled on any extension by restricting the dialing of certain numbers.
  • Password protected CO line calls
Outgoing calls and long-distance dialing can be restricted by the use of password.
  • Time limited forced disconnect
All outgoing calls can be programmed to disconnect after a certain period of time (in minutes).
  • CO line monitor: Any CO line call can be monitor.
  • Caller id transfer
Caller id is also transferred when the incoming call is transferred.
  • Automated attendant mode
The automated attendant will attend to an incoming call by playing an OGM greeting message to the caller and then transfer the call to the appropriate extension according to the caller's input digits. If the called extension is busy or not answering, the appropriate OGM message will be played to inform the caller the status of the call.
  • Operator mode
If incoming calls should be handled by an operator first, the incoming calls can be transferred automatically to a programmed extension with the attendant on duty/operator.                 Alternatively, the PBX can be programmed such that any incoming calls can ring all extensions with no "Do Not Disturb" turned on.
  • Do not disturb
Extension with this feature turned on will not ring and the call will be transferred to another extension.
  • Call hold or Call hold transfer
Incoming call can be put on hold or transferred from any extension without any limit even on misdials. Incoming caller listens to music during the on hold or the transfer.
  • Secretary assisted transfer
The secretary can first talk to the person at the extension requested by the caller before transferring the call (to avoid taking unnecessary calls. The incoming call will be redirected back to the extension first made the transfer if the person at the requested extension does not answer. The caller listens to music on hold during the transfer.
  • Transfer with no answer
The caller listens to music on hold during the transfer.
  • Incoming call pick up
Incoming calls can be answered from any extension.
  • Internal (intercom) calls
Intercom calls can be made between different extensions.
  • Compatible with most communication equipment
The CP-832 can be connected to telephones, fax machines, computers and other communication equipments requiring an analog phone line.
  • Transfer if busy
All Incoming calls will be transferred to another extension when the requested extension is busy.
  • CO line grouping
CO lines can be programmed to be answered by certain group of extensions.
  • Three party conference call
Three party conferencing for both incoming calls and intercom calls.
  • Incoming call alert
Persons at the engaged extensions will hear a special tone alerting them that there is an incoming call.
  • External music on hold input
External music source can be used to override the built-in music on hold.
  • Intercom call all extensions
Any extension can ring all extension at once.
  • Password protected extension line
Access to individual extension can be protected with password.
  •  Power failure tolerant
During a power failure 4 extensions remain functional for both intercom and CO line calls.
You just connect the CP-832 to your telephone line, plug in the AC power, plug in your standard touch-tone telephone and the default settings will allow you to use the system immediately. It's that simple!

If you have any other questions,contact us now!

We look forward to cooperating with you!
